Cadmium in PDB 1jee: Crystal Structure of Atp Sulfurylase in Complex with Chlorate

Enzymatic activity of Crystal Structure of Atp Sulfurylase in Complex with Chlorate

All present enzymatic activity of Crystal Structure of Atp Sulfurylase in Complex with Chlorate:
2.7.7.4;

Protein crystallography data

The structure of Crystal Structure of Atp Sulfurylase in Complex with Chlorate, PDB code: 1jee was solved by T.C.Ullrich, R.Huber, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å) 24.87 / 2.80
Space group H 3 2
Cell size a, b, c (Å), α, β, γ (°) 185.940, 185.940, 223.812, 90.00, 90.00, 120.00
R / Rfree (%) 18.4 / 23.2

Cadmium Binding Sites:

The binding sites of Cadmium atom in the Crystal Structure of Atp Sulfurylase in Complex with Chlorate (pdb code 1jee). This binding sites where shown within 5.0 Angstroms radius around Cadmium atom.
In total 11 binding sites of Cadmium where determined in the Crystal Structure of Atp Sulfurylase in Complex with Chlorate, PDB code: 1jee:
Jump to Cadmium binding site number: 1; 2; 3; 4; 5; 6; 7; 8; 9; 10; 11;

Cadmium binding site 1 out of 11 in 1jee

Go back to Cadmium Binding Sites List in 1jee
Cadmium binding site 1 out of 11 in the Crystal Structure of Atp Sulfurylase in Complex with Chlorate


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 1 of Crystal Structure of Atp Sulfurylase in Complex with Chlorate within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Cd512

b:34.1
occ:1.00
OXT A:ACY556 2.3 30.1 1.0
OD2 A:ASP168 2.3 30.1 1.0
NE2 A:HIS235 2.4 30.7 1.0
NE2 A:HIS236 2.5 21.4 1.0
O A:ACY556 2.8 30.9 1.0
CE1 A:HIS236 2.8 21.1 1.0
C A:ACY556 2.8 30.9 1.0
CE1 A:HIS235 3.3 30.0 1.0
CD2 A:HIS235 3.4 29.8 1.0
CG A:ASP168 3.5 29.4 1.0
CD2 A:HIS236 3.6 22.9 1.0
O A:HOH991 3.7 32.4 1.0
O A:HOH705 3.9 28.5 1.0
ND1 A:HIS236 4.0 22.1 1.0
OD1 A:ASP168 4.0 31.8 1.0
CH3 A:ACY556 4.3 30.5 1.0
CG A:HIS236 4.4 24.0 1.0
ND1 A:HIS235 4.4 29.5 1.0
CG A:HIS235 4.5 28.8 1.0
CB A:ASP168 4.6 29.6 1.0
NH1 A:ARG173 4.7 29.2 1.0

Cadmium binding site 2 out of 11 in 1jee

Go back to Cadmium Binding Sites List in 1jee
Cadmium binding site 2 out of 11 in the Crystal Structure of Atp Sulfurylase in Complex with Chlorate


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 2 of Crystal Structure of Atp Sulfurylase in Complex with Chlorate within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Cd513

b:66.8
occ:0.50
O A:PRO39 2.5 26.9 1.0
SG A:CYS43 2.5 27.4 1.0
O A:HOH1050 3.2 39.4 1.0
C A:PRO39 3.3 26.4 1.0
N A:CYS43 3.7 23.1 1.0
CB A:CYS43 3.8 25.1 1.0
CA A:PRO39 3.9 26.6 1.0
CB A:LEU42 4.1 27.7 1.0
CA A:CYS43 4.1 24.1 1.0
CB A:PRO39 4.2 26.2 1.0
N A:ARG40 4.2 25.7 1.0
O A:GLY226 4.3 33.6 1.0
C A:LEU42 4.5 23.2 1.0
CA A:ARG40 4.5 26.2 1.0
O A:HOH915 4.6 37.0 1.0
CA A:LEU42 4.7 24.9 1.0
CD1 A:LEU227 4.8 40.4 1.0
C A:GLY226 4.9 31.5 1.0
N A:LEU42 4.9 25.7 1.0
C A:ARG40 4.9 26.6 1.0

Cadmium binding site 3 out of 11 in 1jee

Go back to Cadmium Binding Sites List in 1jee
Cadmium binding site 3 out of 11 in the Crystal Structure of Atp Sulfurylase in Complex with Chlorate


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 3 of Crystal Structure of Atp Sulfurylase in Complex with Chlorate within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Cd514

b:36.0
occ:1.00
O A:ACY550 2.1 31.5 1.0
O A:LEU18 2.2 29.8 1.0
OE2 A:GLU22 2.6 34.5 1.0
OE1 A:GLU22 2.7 32.5 1.0
C A:ACY550 2.9 29.8 1.0
CD A:GLU22 3.0 33.4 1.0
OXT A:ACY550 3.1 29.3 1.0
C A:LEU18 3.2 30.6 1.0
CA A:LEU18 4.0 30.4 1.0
CB A:ASN21 4.1 36.9 1.0
N A:LYS19 4.1 31.5 1.0
N A:ASN21 4.3 35.1 1.0
CH3 A:ACY550 4.4 27.3 1.0
CA A:LYS19 4.4 34.3 1.0
OD1 A:ASN21 4.4 40.3 1.0
CG A:GLU22 4.5 33.6 1.0
N A:LYS20 4.6 35.0 1.0
CG A:ASN21 4.6 38.0 1.0
CB A:LEU18 4.6 29.7 1.0
C A:LYS19 4.6 35.7 1.0
CA A:ASN21 4.8 35.5 1.0
N A:GLU22 4.8 34.5 1.0

Cadmium binding site 4 out of 11 in 1jee

Go back to Cadmium Binding Sites List in 1jee
Cadmium binding site 4 out of 11 in the Crystal Structure of Atp Sulfurylase in Complex with Chlorate


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 4 of Crystal Structure of Atp Sulfurylase in Complex with Chlorate within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Cd515

b:58.3
occ:1.00
O A:ACY554 2.4 25.7 1.0
OXT A:ACY554 2.8 23.2 1.0
C A:ACY554 2.9 26.0 1.0
OE1 A:GLU182 3.1 26.4 1.0
OE2 A:GLU182 3.4 27.1 1.0
CD A:GLU182 3.6 26.9 1.0
NZ A:LYS174 4.2 27.1 1.0
CE A:LYS174 4.4 26.8 1.0
CH3 A:ACY554 4.4 27.2 1.0
NH1 A:ARG186 4.5 26.0 1.0
CE1 A:PHE255 4.7 21.8 1.0
CZ A:PHE255 4.7 21.6 1.0

Cadmium binding site 5 out of 11 in 1jee

Go back to Cadmium Binding Sites List in 1jee
Cadmium binding site 5 out of 11 in the Crystal Structure of Atp Sulfurylase in Complex with Chlorate


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 5 of Crystal Structure of Atp Sulfurylase in Complex with Chlorate within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Cd516

b:42.6
occ:1.00
OD1 A:ASP189 2.2 32.5 1.0
O A:ACY555 2.3 47.4 1.0
OXT A:ACY551 2.4 32.1 1.0
OXT A:ACY555 2.5 49.6 1.0
OD2 A:ASP189 2.5 35.4 1.0
C A:ACY555 2.6 49.0 1.0
CG A:ASP189 2.7 31.8 1.0
O A:ACY551 2.7 34.0 1.0
C A:ACY551 2.9 33.1 1.0
CH3 A:ACY555 4.1 48.6 1.0
CB A:ASP189 4.2 27.3 1.0
O A:HOH724 4.3 20.4 1.0
CH3 A:ACY551 4.4 31.2 1.0
O A:HOH1090 4.8 33.2 1.0
CD A:ARG190 4.9 30.8 1.0
CG A:ARG190 5.0 28.5 1.0

Cadmium binding site 6 out of 11 in 1jee

Go back to Cadmium Binding Sites List in 1jee
Cadmium binding site 6 out of 11 in the Crystal Structure of Atp Sulfurylase in Complex with Chlorate


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 6 of Crystal Structure of Atp Sulfurylase in Complex with Chlorate within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Cd524

b:54.9
occ:1.00
O A:ACY564 1.9 25.3 1.0
CH3 A:ACY564 2.5 27.0 1.0
C A:ACY564 2.5 27.9 1.0
OD2 A:ASP71 2.9 43.2 1.0
CG A:ASP71 3.4 41.8 1.0
OXT A:ACY564 3.7 30.2 1.0
OD1 A:ASP71 3.8 44.6 1.0
O A:HOH762 3.9 25.9 1.0
CB A:ASP71 4.2 37.7 1.0
CA A:ASP71 4.8 34.0 1.0
O A:ASP71 4.8 33.5 1.0
NE A:ARG73 5.0 24.3 1.0

Cadmium binding site 7 out of 11 in 1jee

Go back to Cadmium Binding Sites List in 1jee
Cadmium binding site 7 out of 11 in the Crystal Structure of Atp Sulfurylase in Complex with Chlorate


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 7 of Crystal Structure of Atp Sulfurylase in Complex with Chlorate within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Cd530

b:39.1
occ:1.00
OD2 B:ASP168 2.1 31.5 1.0
OXT B:ACY563 2.3 22.5 1.0
NE2 B:HIS236 2.4 24.7 1.0
NE2 B:HIS235 2.5 30.8 1.0
O B:ACY563 2.5 20.0 1.0
C B:ACY563 2.7 22.7 1.0
CE1 B:HIS236 2.9 24.3 1.0
CG B:ASP168 3.3 31.8 1.0
CE1 B:HIS235 3.4 31.5 1.0
CD2 B:HIS235 3.5 29.9 1.0
CD2 B:HIS236 3.5 22.8 1.0
OD1 B:ASP168 3.8 34.2 1.0
O B:HOH980 4.0 57.3 1.0
O B:HOH646 4.0 16.1 1.0
ND1 B:HIS236 4.1 23.9 1.0
CH3 B:ACY563 4.2 22.4 1.0
CG B:HIS236 4.4 24.3 1.0
CB B:ASP168 4.4 29.8 1.0
ND1 B:HIS235 4.5 31.5 1.0
NH1 B:ARG173 4.6 26.7 1.0
CG B:HIS235 4.6 30.9 1.0

Cadmium binding site 8 out of 11 in 1jee

Go back to Cadmium Binding Sites List in 1jee
Cadmium binding site 8 out of 11 in the Crystal Structure of Atp Sulfurylase in Complex with Chlorate


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 8 of Crystal Structure of Atp Sulfurylase in Complex with Chlorate within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Cd531

b:65.3
occ:0.50
O B:HOH1225 2.3 38.5 1.0
SG B:CYS43 2.5 25.3 1.0
O B:PRO39 2.6 29.8 1.0
O B:HOH933 3.2 42.3 1.0
C B:PRO39 3.5 26.8 1.0
N B:CYS43 3.7 23.9 1.0
O B:HOH662 3.7 34.0 1.0
CB B:CYS43 3.7 24.9 1.0
CB B:LEU42 4.1 28.6 1.0
CA B:PRO39 4.1 26.9 1.0
CA B:CYS43 4.1 23.6 1.0
O B:GLY226 4.1 33.9 1.0
C B:LEU42 4.4 25.6 1.0
N B:ARG40 4.4 25.8 1.0
CB B:PRO39 4.5 27.3 1.0
CA B:ARG40 4.6 26.2 1.0
CA B:LEU42 4.7 26.2 1.0
C B:GLY226 4.8 30.7 1.0
O B:HOH711 4.8 18.5 1.0
N B:LEU42 4.9 26.1 1.0
C B:ARG40 5.0 26.3 1.0
CD1 B:LEU227 5.0 39.3 1.0
O B:ARG40 5.0 26.2 1.0

Cadmium binding site 9 out of 11 in 1jee

Go back to Cadmium Binding Sites List in 1jee
Cadmium binding site 9 out of 11 in the Crystal Structure of Atp Sulfurylase in Complex with Chlorate


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 9 of Crystal Structure of Atp Sulfurylase in Complex with Chlorate within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Cd532

b:39.5
occ:1.00
OE1 B:GLU22 1.9 34.3 1.0
O B:ACY557 2.3 32.4 1.0
O B:LEU18 2.3 30.8 1.0
OE2 B:GLU22 2.4 36.5 1.0
CD B:GLU22 2.4 34.1 1.0
C B:ACY557 3.0 31.6 1.0
OXT B:ACY557 3.0 32.9 1.0
C B:LEU18 3.4 32.3 1.0
CG B:GLU22 3.9 33.8 1.0
CB B:ASN21 4.3 36.9 1.0
N B:LYS19 4.3 34.0 1.0
CA B:LYS19 4.3 35.5 1.0
CA B:LEU18 4.4 30.8 1.0
CH3 B:ACY557 4.4 31.7 1.0
N B:GLU22 4.6 35.6 1.0
N B:ASN21 4.6 36.0 1.0
C B:LYS19 4.7 35.8 1.0
OD1 B:ASN21 4.8 40.1 1.0
CB B:LEU18 4.9 29.0 1.0
N B:LYS20 4.9 36.3 1.0
CG B:ASN21 4.9 38.7 1.0
CB B:GLU22 4.9 35.0 1.0
CA B:ASN21 5.0 36.3 1.0

Cadmium binding site 10 out of 11 in 1jee

Go back to Cadmium Binding Sites List in 1jee
Cadmium binding site 10 out of 11 in the Crystal Structure of Atp Sulfurylase in Complex with Chlorate


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 10 of Crystal Structure of Atp Sulfurylase in Complex with Chlorate within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Cd533

b:64.8
occ:1.00
OE1 B:GLU182 2.4 30.1 1.0
OE2 B:GLU182 2.8 29.4 1.0
CD B:GLU182 3.0 29.3 1.0
O B:ACY561 3.3 18.6 1.0
OXT B:ACY561 3.9 19.2 1.0
C B:ACY561 3.9 21.4 1.0
NZ B:LYS174 4.1 26.6 1.0
O B:ACY560 4.2 35.8 1.0
OXT B:ACY560 4.3 37.0 1.0
C B:ACY560 4.4 36.2 1.0
CE B:LYS174 4.4 25.2 1.0
CG B:GLU182 4.5 26.8 1.0
NH1 B:ARG186 4.6 29.6 1.0
NH2 B:ARG186 4.8 29.8 1.0
CE1 B:PHE255 4.9 21.6 1.0
CZ B:PHE255 5.0 21.6 1.0

Cadmium binding site 11 out of 11 in 1jee

Go back to Cadmium Binding Sites List in 1jee

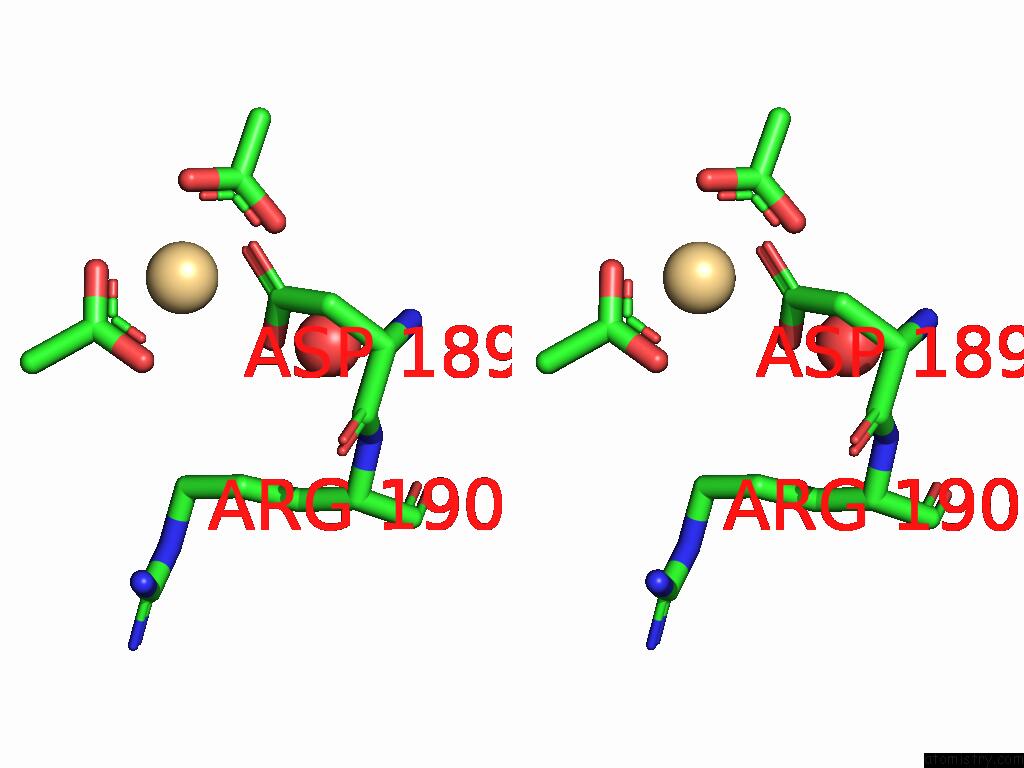

Cadmium binding site 11 out of 11 in the Crystal Structure of Atp Sulfurylase in Complex with Chlorate


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 11 of Crystal Structure of Atp Sulfurylase in Complex with Chlorate within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Cd534

b:35.8
occ:1.00
OXT B:ACY562 2.2 65.7 1.0
OD1 B:ASP189 2.2 32.5 1.0
OXT B:ACY558 2.3 34.7 1.0
OD2 B:ASP189 2.5 32.0 1.0
C B:ACY562 2.6 66.4 1.0
CG B:ASP189 2.7 30.3 1.0
O B:ACY562 2.7 66.2 1.0
O B:ACY558 2.8 36.1 1.0
C B:ACY558 2.9 36.2 1.0
CH3 B:ACY562 3.9 67.0 1.0
CB B:ASP189 4.1 28.0 1.0
O B:HOH942 4.3 5.4 1.0
CH3 B:ACY558 4.4 35.4 1.0
CD B:ARG190 4.7 29.7 1.0
CG B:ARG190 4.8 26.4 1.0

Reference:

T.C.Ullrich, R.Huber. The Complex Structures of Atp Sulfurylase with Thiosulfate, Adp and Chlorate Reveal New Insights in Inhibitory Effects and the Catalytic Cycle. J.Mol.Biol. V. 313 1117 2001.
ISSN: ISSN 0022-2836
PubMed: 11700067
DOI: 10.1006/JMBI.2001.5098
