Cadmium in PDB 1yiw: X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin

Protein crystallography data

The structure of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin, PDB code: 1yiw was solved by D.Bang, G.I.Makhatadze, V.Tereshko, A.A.Kossiakoff, S.B.Kent, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å) 20.00 / 1.39
Space group P 21 21 21
Cell size a, b, c (Å), α, β, γ (°) 43.776, 50.476, 92.649, 90.00, 90.00, 90.00
R / Rfree (%) 17.1 / 20.7

Other elements in 1yiw:

The structure of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin also contains other interesting chemical elements:

Chlorine (Cl) 3 atoms

Cadmium Binding Sites:

The binding sites of Cadmium atom in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin (pdb code 1yiw). This binding sites where shown within 5.0 Angstroms radius around Cadmium atom.
In total 17 binding sites of Cadmium where determined in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin, PDB code: 1yiw:
Jump to Cadmium binding site number: 1; 2; 3; 4; 5; 6; 7; 8; 9; 10; 11; 12; 13; 14; 15; 16; 17;

Cadmium binding site 1 out of 17 in 1yiw

Go back to Cadmium Binding Sites List in 1yiw
Cadmium binding site 1 out of 17 in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 1 of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Cd90

b:17.2
occ:1.00
O A:HOH95 2.4 26.7 1.0
O B:HOH96 2.4 22.2 1.0
CL C:CL91 2.5 13.0 1.0
CL A:CL92 2.5 14.6 1.0
CL B:CL93 2.5 15.1 1.0
O C:HOH94 2.7 25.0 1.0
O A:HOH97 3.8 36.6 1.0
O B:HOH203 4.6 11.9 1.0
O A:SER20 4.6 8.6 1.0
O A:HOH102 4.6 15.2 1.0
ND2 C:ASN25 4.7 6.0 1.0
ND2 B:ASN25 4.7 6.8 1.0
O C:HOH303 4.8 17.3 1.0
O B:SER20 4.8 10.3 1.0
O C:SER20 4.8 8.1 1.0
ND2 A:ASN25 4.8 6.6 1.0

Cadmium binding site 2 out of 17 in 1yiw

Go back to Cadmium Binding Sites List in 1yiw
Cadmium binding site 2 out of 17 in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 2 of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Cd101

b:12.6
occ:1.00
OD1 A:ASP21 2.2 6.0 1.0
OE1 B:GLU18 2.2 12.6 1.0
O A:HOH102 2.2 15.2 1.0
OD2 A:ASP21 2.3 8.6 1.0
O A:HOH103 2.4 6.0 1.0
OE2 B:GLU18 2.5 8.9 1.0
CG A:ASP21 2.7 8.2 1.0
CD B:GLU18 2.7 9.8 1.0
CE A:LYS29 4.1 14.9 1.0
ND2 A:ASN25 4.2 6.6 1.0
CB A:ASP21 4.2 8.2 1.0
CG B:GLU18 4.3 7.3 1.0
O B:HOH1145 4.3 21.1 0.5
O A:HOH1109 4.5 19.9 1.0
O B:HOH203 4.6 11.9 1.0
OE1 A:GLU18 4.6 9.5 1.0
NZ A:LYS29 4.6 19.0 1.0
N A:GLU18 4.6 8.3 1.0
CL C:CL91 4.7 13.0 1.0
CG A:GLU18 4.8 9.4 1.0
CB A:ASN25 4.9 4.8 1.0
CG A:ASN25 4.9 6.7 1.0

Cadmium binding site 3 out of 17 in 1yiw

Go back to Cadmium Binding Sites List in 1yiw
Cadmium binding site 3 out of 17 in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 3 of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Cd104

b:13.2
occ:1.00
O A:HOH106 1.9 18.7 1.0
OE1 A:GLU24 2.3 11.7 1.0
OD1 A:ASP52 2.3 14.5 1.0
OE2 A:GLU24 2.4 13.9 1.0
O A:HOH107 2.4 4.1 1.0
O A:HOH105 2.5 5.7 1.0
CD A:GLU24 2.7 13.8 1.0
CG A:ASP52 3.3 10.9 1.0
CB A:ASP52 3.7 10.8 1.0
CG A:GLU24 4.2 9.0 1.0
OD2 A:ASP52 4.4 16.4 1.0
NZ A:LYS27 4.6 14.1 1.0
O B:HOH1240 4.6 27.6 0.5
O A:HOH1141 4.7 21.8 1.0
CD A:LYS27 4.7 11.0 1.0
O A:HOH1106 5.0 10.1 1.0
CB A:GLU24 5.0 7.8 1.0

Cadmium binding site 4 out of 17 in 1yiw

Go back to Cadmium Binding Sites List in 1yiw
Cadmium binding site 4 out of 17 in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 4 of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Cd108

b:14.1
occ:0.50
O A:HOH109 2.2 19.1 1.0
O A:HOH113 2.2 26.8 1.0
O A:HOH112 2.2 16.3 1.0
ND1 A:HIS68 2.3 14.5 1.0
O A:HOH110 2.4 9.8 1.0
O A:HOH111 2.5 22.1 1.0
CE1 A:HIS68 3.2 13.9 1.0
CG A:HIS68 3.3 10.2 1.0
CB A:HIS68 3.6 9.0 1.0
NE2 A:HIS68 4.3 13.9 1.0
CB A:LYS6 4.4 9.9 1.0
CD2 A:HIS68 4.4 15.8 1.0
O A:THR7 4.4 11.0 1.0
O A:LEU69 4.4 8.9 1.0
CA A:HIS68 4.5 8.6 1.0
O A:LYS6 4.7 9.7 1.0

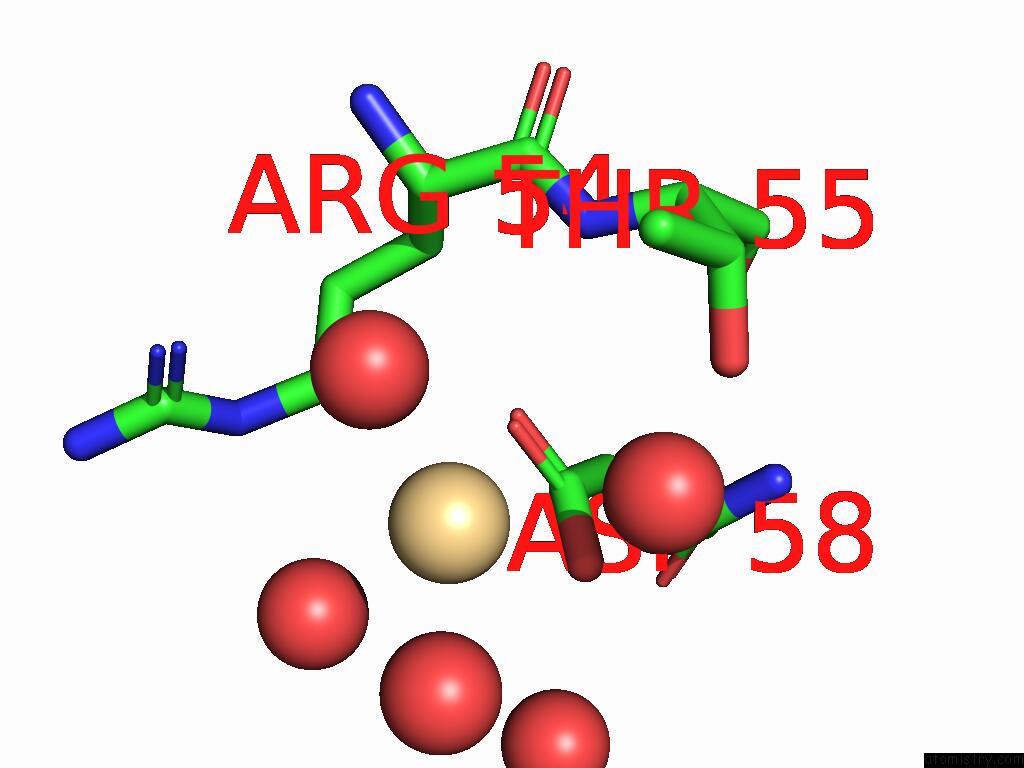

Cadmium binding site 5 out of 17 in 1yiw

Go back to Cadmium Binding Sites List in 1yiw
Cadmium binding site 5 out of 17 in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 5 of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Cd114

b:15.4
occ:0.50
OD1 A:ASP58 2.2 10.6 1.0
O A:HOH118 2.3 18.1 0.5
O A:HOH117 2.3 20.6 1.0
OD2 A:ASP58 2.5 12.2 1.0
O A:HOH116 2.5 16.6 1.0
O A:HOH118 2.5 18.0 0.5
O A:HOH115 2.6 40.7 1.0
CG A:ASP58 2.7 10.5 1.0
O A:HOH1154 3.9 16.2 0.5
CB A:ASP58 4.2 8.2 1.0
CD A:ARG54 4.3 11.6 1.0
OG1 A:THR55 4.4 10.8 1.0
O A:HOH1134 4.8 23.4 1.0
CG2 A:THR55 4.8 9.8 1.0
N A:THR55 4.8 7.6 1.0
NH1 A:ARG54 4.9 14.2 1.0
O A:HOH1140 5.0 22.1 1.0

Cadmium binding site 6 out of 17 in 1yiw

Go back to Cadmium Binding Sites List in 1yiw
Cadmium binding site 6 out of 17 in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 6 of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Cd119

b:21.1
occ:0.50
O A:HOH123 2.1 18.7 1.0
O A:HOH120 2.1 19.5 1.0
O A:HOH122 2.4 42.8 1.0
O A:HOH124 2.7 22.8 1.0
O A:HOH121 3.4 39.4 1.0
NE2 A:HIS68 3.6 13.9 1.0
CD2 A:HIS68 3.6 15.8 1.0
O A:HOH1155 3.7 17.9 0.5
N A:ALA46 4.1 11.3 1.0
O A:THR66 4.4 11.5 1.0
CA A:ALA46 4.5 12.7 1.0
CE1 A:HIS68 4.9 13.9 1.0
CG A:HIS68 4.9 10.2 1.0

Cadmium binding site 7 out of 17 in 1yiw

Go back to Cadmium Binding Sites List in 1yiw
Cadmium binding site 7 out of 17 in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 7 of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Cd301

b:13.4
occ:1.00
O C:HOH303 2.0 17.3 1.0
OE1 A:GLU18 2.2 9.5 1.0
OD1 C:ASP21 2.2 6.5 1.0
O C:HOH302 2.4 7.0 1.0
OD2 C:ASP21 2.5 10.1 1.0
OE2 A:GLU18 2.6 9.0 1.0
CD A:GLU18 2.7 10.3 1.0
CG C:ASP21 2.7 10.3 1.0
ND2 C:ASN25 4.1 6.0 1.0
CE C:LYS29 4.2 17.8 1.0
CG A:GLU18 4.2 9.4 1.0
CB C:ASP21 4.3 7.4 1.0
O A:HOH102 4.4 15.2 1.0
OE2 C:GLU18 4.4 11.0 1.0
O B:HOH1145 4.5 21.1 0.5
N C:GLU18 4.6 8.2 1.0
NZ C:LYS29 4.7 22.9 1.0
CL B:CL93 4.7 15.1 1.0
CB C:ASN25 4.8 4.8 1.0
CG C:GLU18 4.8 9.0 1.0
CG C:ASN25 4.8 7.4 1.0
CB C:GLU18 4.9 8.7 1.0

Cadmium binding site 8 out of 17 in 1yiw

Go back to Cadmium Binding Sites List in 1yiw
Cadmium binding site 8 out of 17 in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 8 of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Cd201

b:14.1
occ:1.00
O B:HOH203 2.1 11.9 1.0
OD1 B:ASP21 2.3 8.4 1.0
O B:HOH202 2.3 7.2 1.0
OE2 C:GLU18 2.4 11.0 1.0
OE1 C:GLU18 2.4 10.0 1.0
OD2 B:ASP21 2.5 11.8 1.0
CD C:GLU18 2.7 9.2 1.0
CG B:ASP21 2.8 9.6 1.0
CE B:LYS29 4.0 13.6 1.0
ND2 B:ASN25 4.2 6.8 1.0
O B:HOH1145 4.2 21.1 0.5
CG C:GLU18 4.3 9.0 1.0
CB B:ASP21 4.3 6.6 1.0
OE1 B:GLU18 4.5 12.6 1.0
NZ B:LYS29 4.6 15.8 1.0
O C:HOH303 4.7 17.3 1.0
N B:GLU18 4.7 6.9 1.0
CL A:CL92 4.7 14.6 1.0
CG B:GLU18 4.8 7.3 1.0
CB B:ASN25 4.8 4.3 1.0
CG B:ASN25 4.8 5.5 1.0

Cadmium binding site 9 out of 17 in 1yiw

Go back to Cadmium Binding Sites List in 1yiw
Cadmium binding site 9 out of 17 in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 9 of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Cd204

b:14.5
occ:1.00
OE2 B:GLU24 2.2 15.7 1.0
O B:HOH205 2.4 22.0 1.0
OD1 B:ASP52 2.4 17.8 1.0
O B:HOH206 2.4 5.3 1.0
O B:HOH207 2.5 4.2 1.0
OE1 B:GLU24 2.5 16.8 1.0
CD B:GLU24 2.7 12.2 1.0
CG B:ASP52 3.3 13.4 1.0
CB B:ASP52 3.8 9.7 1.0
CG B:GLU24 4.2 8.3 1.0
NZ B:LYS27 4.4 13.3 1.0
OD2 B:ASP52 4.4 16.8 1.0
O B:HOH1244 4.7 28.0 0.5
O B:HOH1229 4.7 23.9 1.0
CD B:LYS27 4.8 9.5 1.0
O C:HOH1335 4.9 32.3 1.0
CB B:GLU24 4.9 8.5 1.0
O B:HOH1210 5.0 12.8 1.0

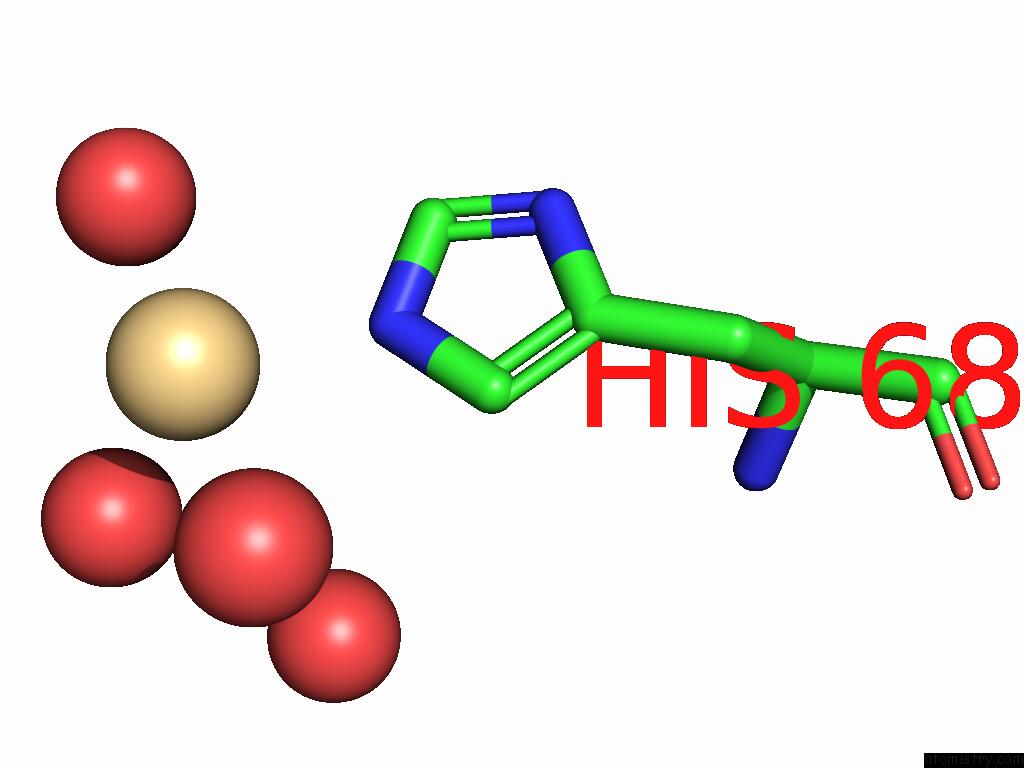

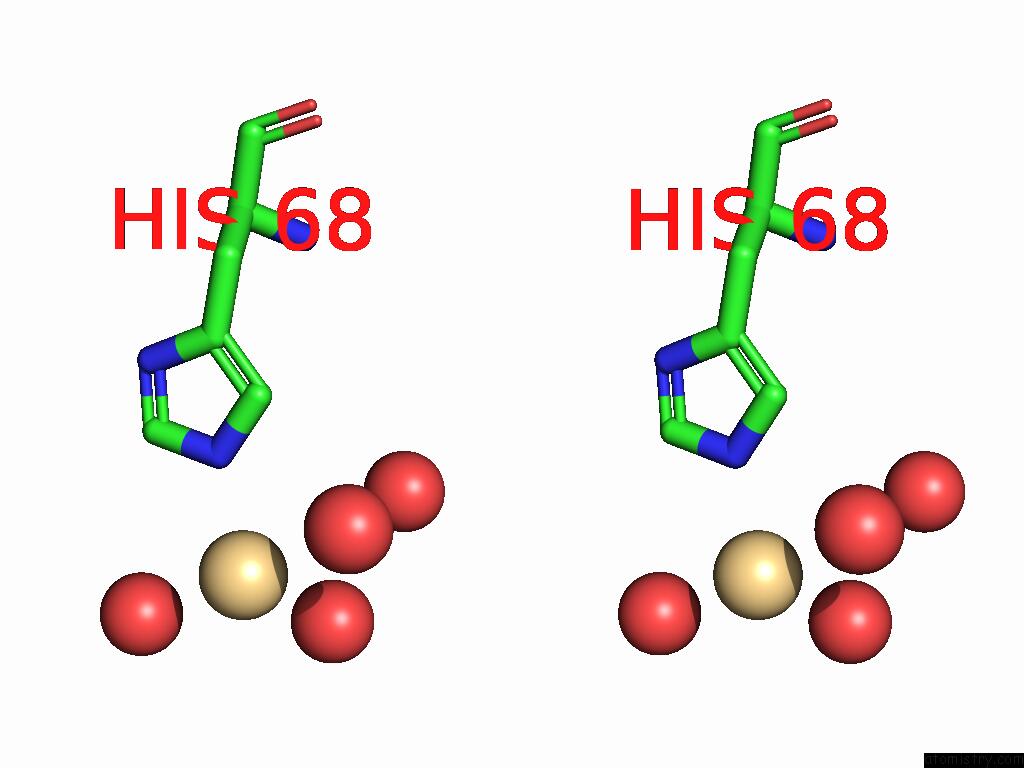

Cadmium binding site 10 out of 17 in 1yiw

Go back to Cadmium Binding Sites List in 1yiw
Cadmium binding site 10 out of 17 in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 10 of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Cd208

b:15.8
occ:0.50
O B:HOH213 2.3 16.0 1.0
NE2 B:HIS68 2.5 16.6 1.0
O B:HOH212 2.5 12.4 0.5
O B:HOH209 2.5 31.6 1.0
O B:HOH211 2.6 27.7 1.0
O B:HOH212 2.6 14.8 0.5
O B:HOH210 2.7 13.1 1.0
CD2 B:HIS68 3.2 16.8 1.0
CE1 B:HIS68 3.6 13.2 1.0
N B:ALA46 4.2 9.8 1.0
CG B:HIS68 4.4 11.1 1.0
O B:THR66 4.5 10.4 1.0
ND1 B:HIS68 4.5 13.7 1.0
CA B:ALA46 4.6 10.1 1.0
O B:HOH1245 4.9 17.0 0.5

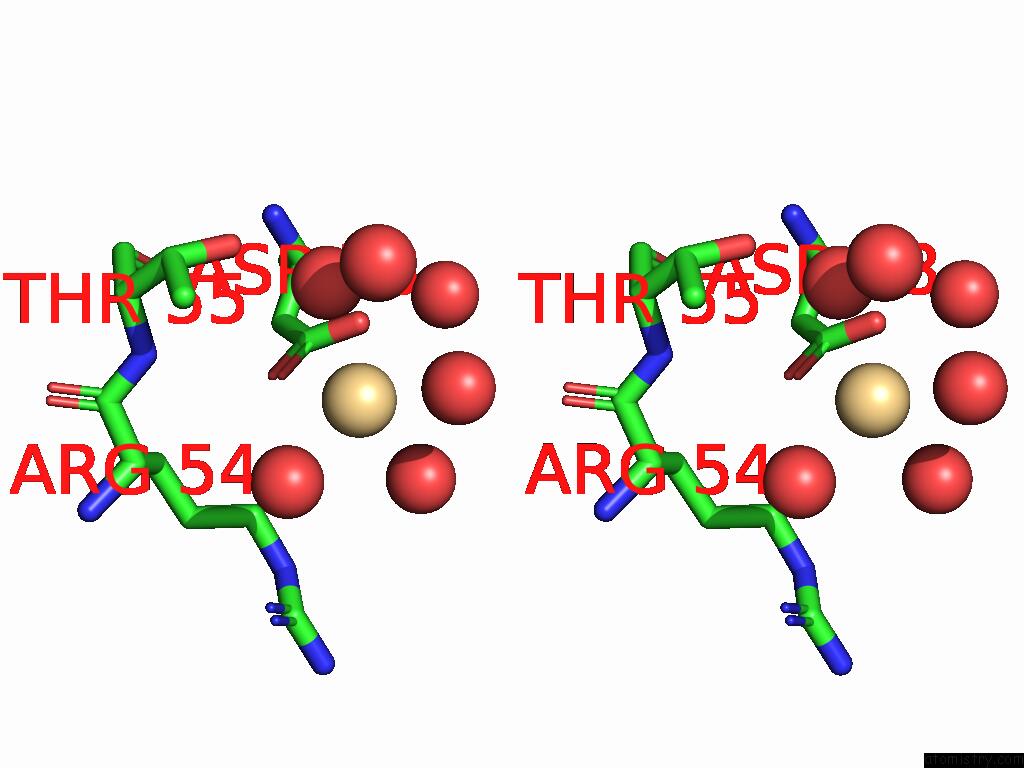

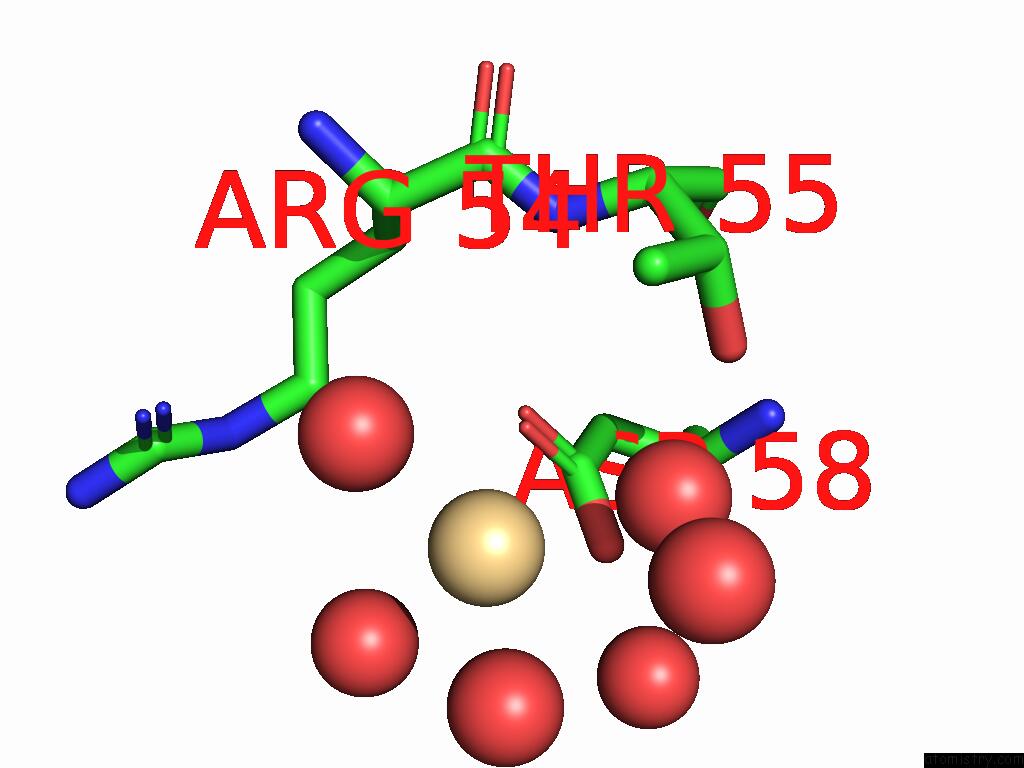

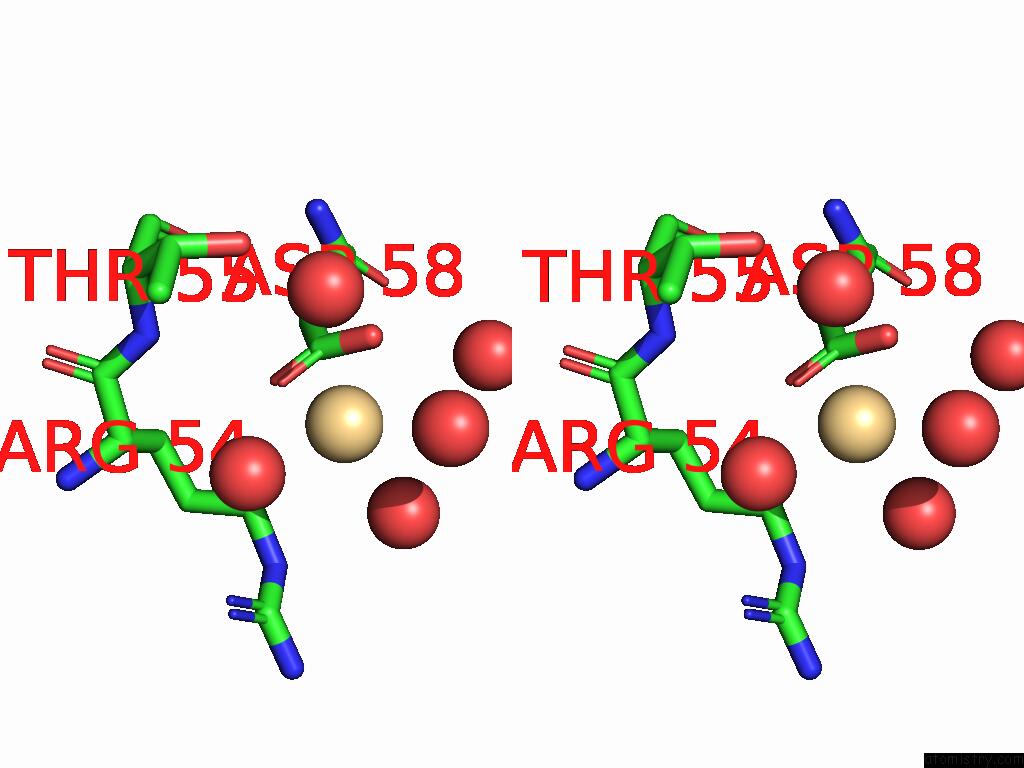

Cadmium binding site 11 out of 17 in 1yiw

Go back to Cadmium Binding Sites List in 1yiw
Cadmium binding site 11 out of 17 in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 11 of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Cd214

b:28.0
occ:0.50
O B:HOH216 2.3 23.9 1.0
OD1 B:ASP58 2.3 7.5 1.0
OD2 B:ASP58 2.4 11.3 1.0
O B:HOH217 2.4 23.6 1.0
CG B:ASP58 2.7 11.1 1.0
O B:HOH218 2.8 30.1 1.0
O B:HOH215 3.1 38.3 1.0
CB B:ASP58 4.2 8.3 1.0
O B:HOH1234 4.2 22.6 1.0
CD B:ARG54 4.4 12.5 1.0
OG1 B:THR55 4.4 9.1 1.0
CG2 B:THR55 4.7 9.3 1.0
NH1 B:ARG54 4.8 18.0 1.0
N B:THR55 4.9 6.6 1.0
NE B:ARG54 5.0 16.0 1.0

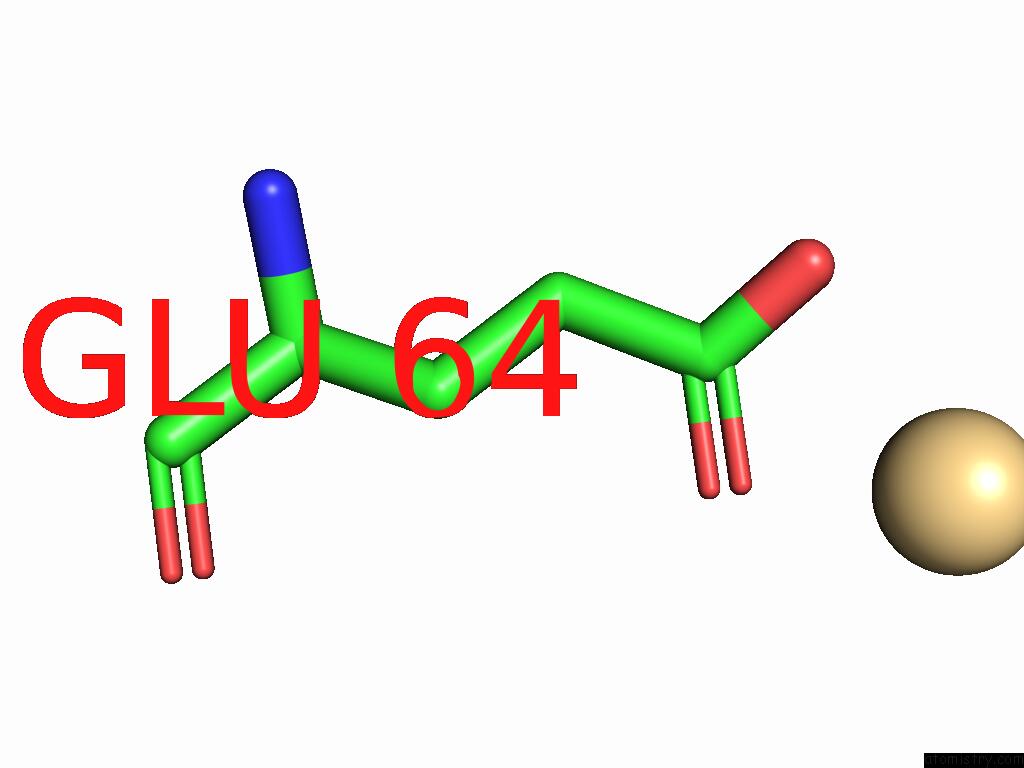

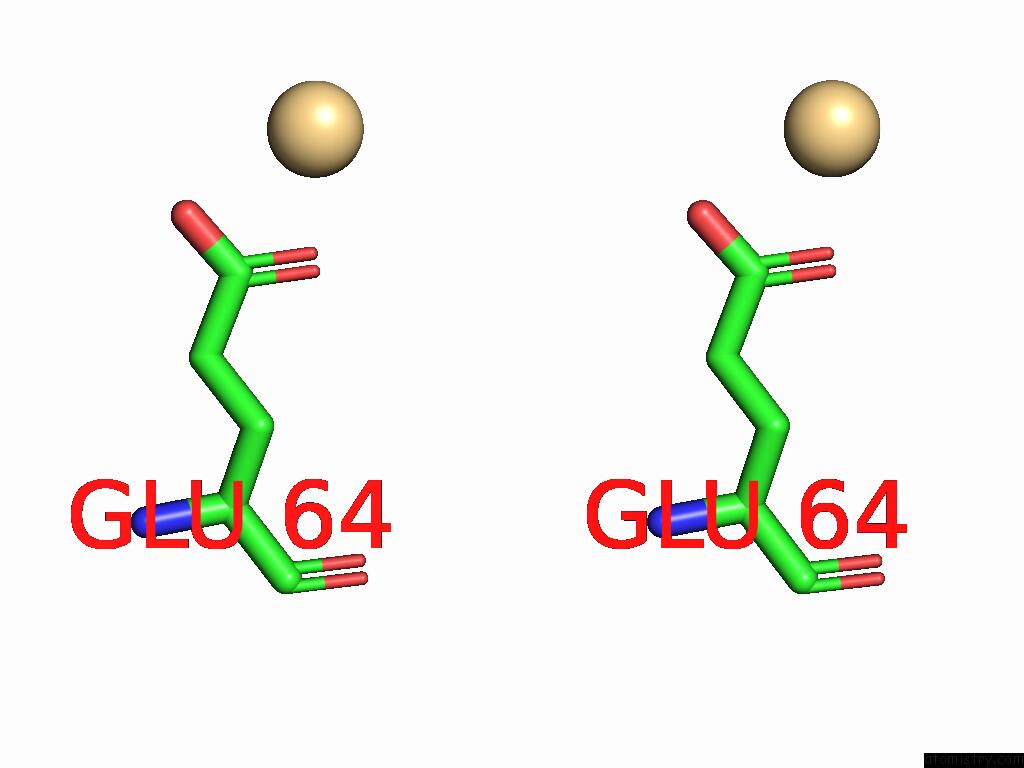

Cadmium binding site 12 out of 17 in 1yiw

Go back to Cadmium Binding Sites List in 1yiw
Cadmium binding site 12 out of 17 in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 12 of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Cd225

b:31.7
occ:0.50
OE1 B:GLU64 2.2 25.6 1.0
OE2 B:GLU64 2.6 24.3 1.0
CD B:GLU64 2.7 19.9 1.0
CG B:GLU64 4.2 17.5 1.0

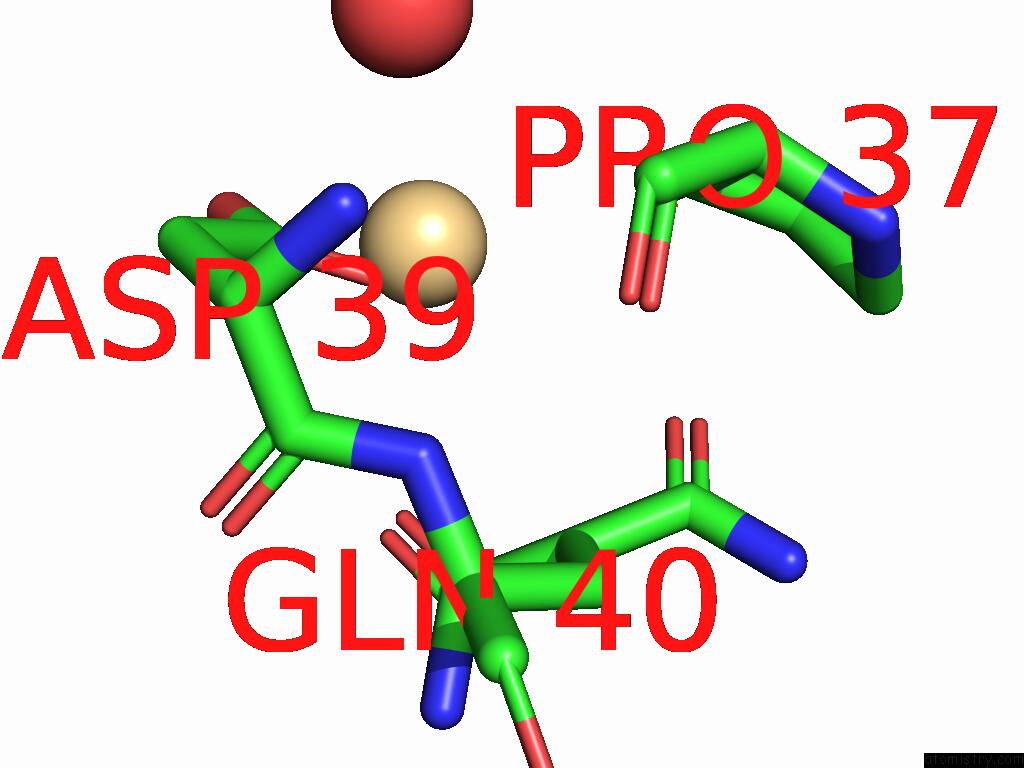

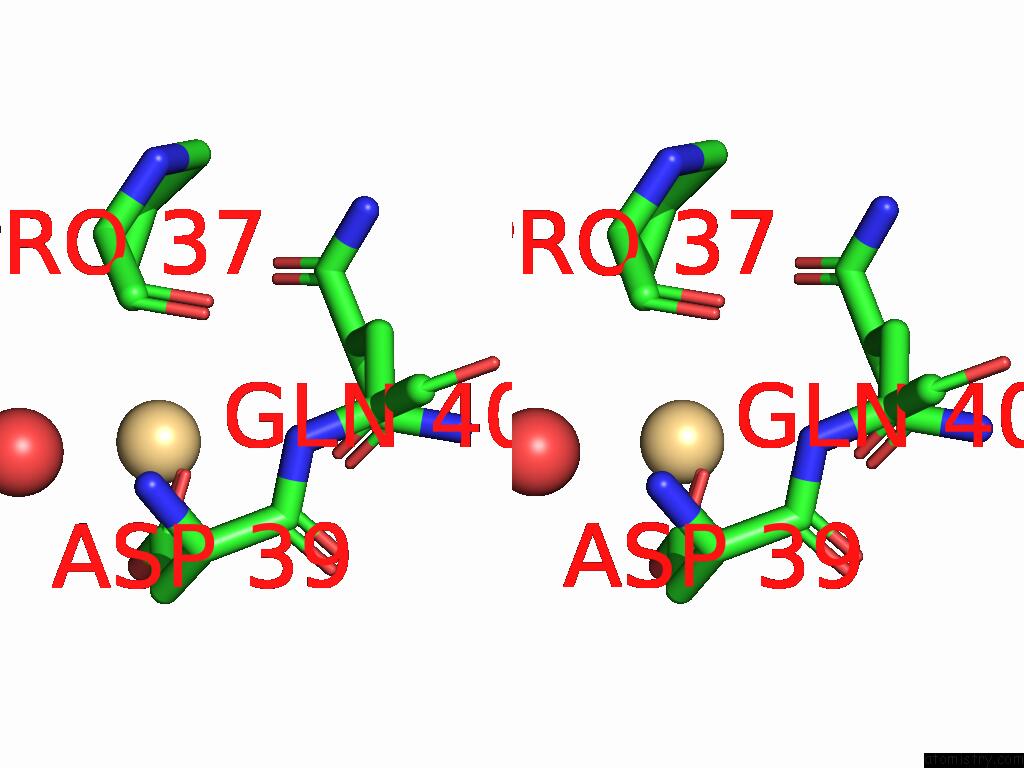

Cadmium binding site 13 out of 17 in 1yiw

Go back to Cadmium Binding Sites List in 1yiw
Cadmium binding site 13 out of 17 in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 13 of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Cd229

b:42.8
occ:0.25
OD1 B:ASP39 2.5 16.1 1.0
OD2 B:ASP39 2.7 19.5 1.0
CG B:ASP39 3.0 17.1 1.0
OE1 B:GLN40 3.7 17.8 0.5
OE1 B:GLN40 4.0 19.0 0.5
O B:HOH1223 4.3 17.2 1.0
CB B:PRO37 4.4 11.6 1.0
CB B:ASP39 4.5 12.6 1.0
CD B:GLN40 4.6 13.3 0.5
CG B:GLN40 4.7 14.0 1.0
CD B:GLN40 4.8 14.3 0.5
CG B:PRO37 5.0 12.9 1.0

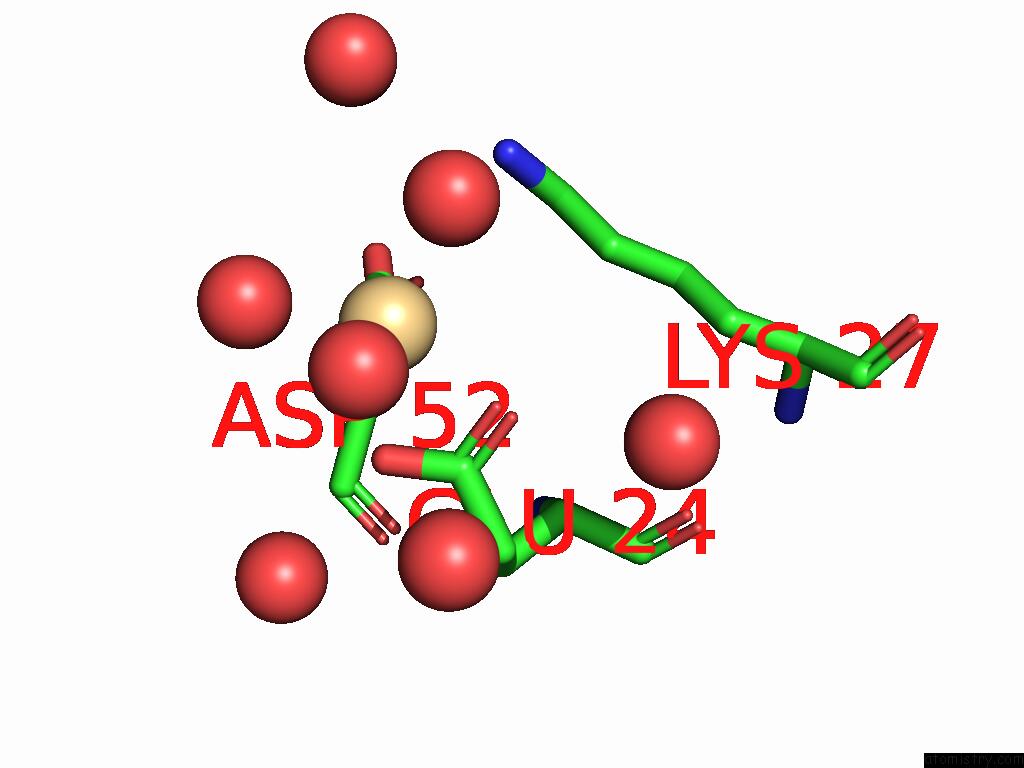

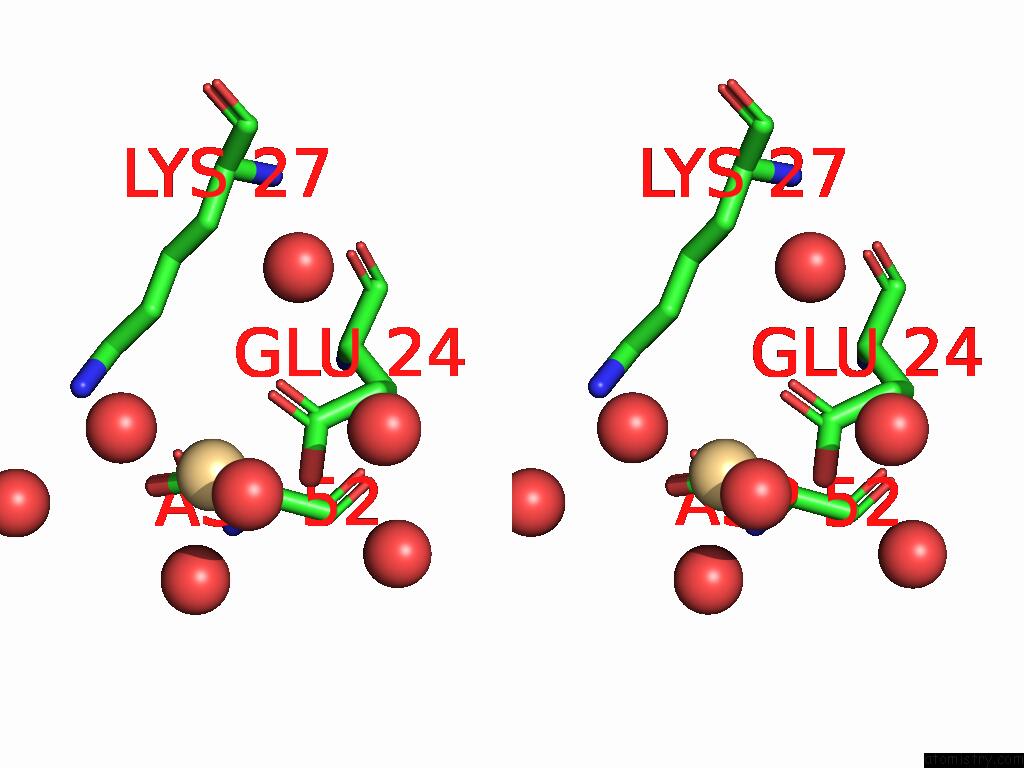

Cadmium binding site 14 out of 17 in 1yiw

Go back to Cadmium Binding Sites List in 1yiw
Cadmium binding site 14 out of 17 in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 14 of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin within 5.0Å range:
probe atom residue distance (Å) B Occ
C:Cd304

b:12.6
occ:1.00
OE2 C:GLU24 2.3 10.5 1.0
O C:HOH306 2.3 18.5 1.0
OE1 C:GLU24 2.4 13.1 1.0
O C:HOH307 2.4 7.2 1.0
O C:HOH305 2.4 6.9 1.0
OD1 C:ASP52 2.4 14.8 1.0
CD C:GLU24 2.7 11.4 1.0
CG C:ASP52 3.4 16.0 1.0
CB C:ASP52 3.8 9.6 1.0
CG C:GLU24 4.2 8.4 1.0
NZ C:LYS27 4.4 11.5 1.0
OD2 C:ASP52 4.4 21.0 1.0
O C:HOH1359 4.6 28.3 0.5
O A:HOH1334 4.7 35.6 1.0
O C:HOH1311 4.7 22.1 1.0
CD C:LYS27 4.8 9.2 1.0
CB C:GLU24 5.0 6.5 1.0
O C:HOH1302 5.0 11.4 1.0

Cadmium binding site 15 out of 17 in 1yiw

Go back to Cadmium Binding Sites List in 1yiw
Cadmium binding site 15 out of 17 in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 15 of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin within 5.0Å range:
probe atom residue distance (Å) B Occ
C:Cd308

b:8.1
occ:0.50
NE2 C:HIS68 2.3 14.2 1.0
O C:HOH309 2.3 17.0 1.0
O C:HOH311 2.5 10.7 1.0
O C:HOH310 2.6 10.2 1.0
CD2 C:HIS68 3.2 12.5 1.0
CE1 C:HIS68 3.3 14.7 1.0
O C:HOH1319 4.1 18.6 1.0
ND1 C:HIS68 4.3 14.3 1.0
CG C:HIS68 4.4 10.7 1.0

Cadmium binding site 16 out of 17 in 1yiw

Go back to Cadmium Binding Sites List in 1yiw
Cadmium binding site 16 out of 17 in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 16 of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin within 5.0Å range:
probe atom residue distance (Å) B Occ
C:Cd314

b:40.4
occ:1.00
OD1 C:ASP58 2.3 8.7 1.0
O C:HOH316 2.3 29.1 1.0
OD2 C:ASP58 2.4 8.8 1.0
O C:HOH318 2.5 28.6 1.0
O C:HOH315 2.7 29.5 1.0
CG C:ASP58 2.7 9.3 1.0
O C:HOH317 2.8 31.7 1.0
CB C:ASP58 4.2 7.3 1.0
O B:HOH1237 4.3 26.0 1.0
OG1 C:THR55 4.4 9.6 1.0
CD C:ARG54 4.4 8.6 1.0
O C:HOH1314 4.4 20.6 1.0
CG2 C:THR55 4.6 11.3 1.0
N C:THR55 4.9 7.1 1.0

Cadmium binding site 17 out of 17 in 1yiw

Go back to Cadmium Binding Sites List in 1yiw
Cadmium binding site 17 out of 17 in the X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin


Mono view


Stereo pair view

A full contact list of Cadmium with other atoms in the Cd binding site number 17 of X-Ray Crystal Structure of A Chemically Synthesized Ubiquitin within 5.0Å range:
probe atom residue distance (Å) B Occ
C:Cd325

b:28.4
occ:0.50
OE1 C:GLU64 2.2 23.7 1.0
OE2 C:GLU64 2.6 23.2 1.0
O C:HOH326 2.7 31.0 1.0
CD C:GLU64 2.7 20.3 1.0
CG C:GLU64 4.2 18.7 1.0
CB C:GLU64 5.0 15.2 1.0

Reference:

D.Bang, G.I.Makhatadze, V.Tereshko, A.A.Kossiakoff, S.B.Kent. X-Ray Crystal Structure of A Chemically Synthesized [D-GLN35]Ubiquitin Angew.Chem.Int.Ed.Engl. V. 44 3852 2005.
ISSN: ISSN 1433-7851
PubMed: 15834850
DOI: 10.1002/ANIE.200463040
Page generated: Wed Oct 28 09:58:07 2020
© Copyright 2008-2020 by atomistry.com
Home   |    Site Map   |    Copyright   |    Contact us   |    Privacy
